The Importance of a quality BMS system In Lithium Batteries

tim • February 27, 2021
One of the most crucial components of a lithium battery is the internal BMS system. BMS stands for Battery Management System and this part of the battery is extremely important.

Lithium batteries can be in danger of exploding under severe over-charging conditions, causing damage to the battery and posing a threat to your asset and your personal safety. The BMS is a control system which controls and protects the battery cells during performance and from damage preventing potential faults from occurring. A quality BMS system will disconnect loads if the voltage gets too low and disconnect chargers if the voltage gets too high. Over voltage for a prolonged period during charging can cause plating of the metallic lithium on the battery’s anode which permanently degrades performance.


If the battery discharges too low, it becomes impossible to recover using standard battery chargers. So if you have bought a Lithium battery and thought why has this battery discharged to 1 volt and I can no longer charge it, then its most likely due to it’s poor BMS. Unfortunately, there are many of these available online to buy and Consumers are tempted by the cheap price.

Lithium-ion batteries have a major difference from Lead Acid batteries when it comes to balancing the voltages in each individual cell during charging. In Lead Acid batteries if one cell charges faster and reaches full voltage, the typical low end of the charge current, will ensure the other cells get fully charge. So the Lead Acid batteries are self-equalizing during charge. This is not the case with Lithium Batteries. When a Lithium-ion cell is fully charged, it’s voltage begins to rise further which may lead to electrode damage. If the charge of the entire battery is stopped when only one cell is fully charged, the remaining cells do not reach full charge and the battery will operate below peak capacity. A well designed BMS ensures each cell will safely and fully charge before the entire charging process is complete.

Unlike Lead Acid batteries, Lithium Iron Phosphate batteries operate efficiently and safely at temperatures up to 60 degrees Celsius or more. But higher operating or storage temperatures will lead to the electrode material degrading. The BMS of a Lithium battery uses embedded thermistors to actively monitor the temperature during operation and will disconnect if the maximum temperature is reached. They also vary in how much current they can handle. The most reliable BMS systems will be rated at 100 amps, despite the battery rating being declared at for instance 50AH or 80 AH or 100AH. So a good question to ask the Retailer or check the specification sheet before purchasing. If they dont know or its missing from the Spec sheet then its a warning sign.

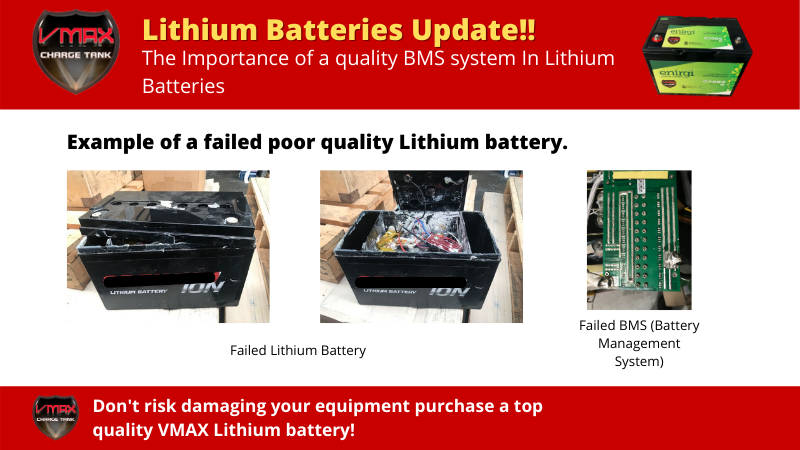

To demonstrate, we show you an example of a very poor BMS system that was discovered in a common 300mm Group 27 100AH rated battery. You can see the corrosion inside the battery, caused by poor quality components. If you look closely, you will read the label on the BMS as only rated to 35 amps. This makes the manufacturing of the battery a lot cheaper, however it makes the performance and life expectancy really poor and the product in application potentially hazardous.
In this case you are not buying what you think you are! You are also limited to what you can use this battery for, as the low rated BMS limits its performance. And just to show you a standard looking BMS from another brand, Im sure you can see the difference for yourself.

A lot of the applications we specify Lithium Batteries for, do have higher surge currents. That’s what makes Lithium so good. Low level rated BMS systems take this advantage away and can be dangerous.

So in conclusion a good BMS system is fundamentally the key to a good quality Lithium battery and essential to its performance. Its a classic case of paying for what you get and the good quality brands are the ones that cost money and reflected in the price you pay.

Unfortunately we see our customers too often being burnt by cheap Lithium failures exposing themselves to harm and damaging their hard earned assets eg. caravan or boat. Whilst you pay a lot more than an AGM battery equivalent, a good quality Lithium is particularly beneficial if you are keeping your asset for 4 plus years, you want best cycling performance, light weight and want fast recharging. This cost versus benefit ratio will do you well over the journey. If you are looking for something to serve your purpose for 4 years or less, you will probably find an AGM battery is best fit for purpose.
